REPLACEMENT FOR SSA61

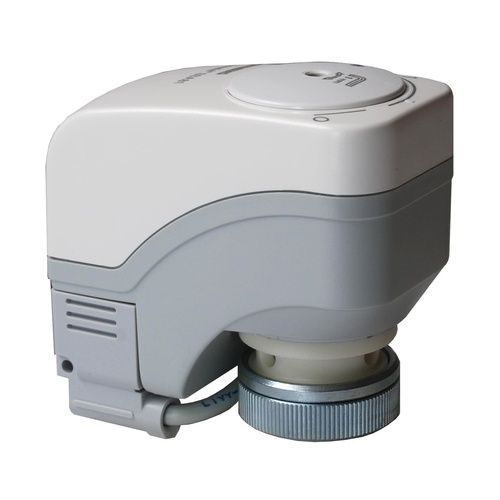

SSA161.05HFElectromotoric actuators 100 N for valves with 1.2...6.5 mm stroke

For pressure independent combi valves (PICV), radiator valves, MiniCombi valves (MCV) and small globe valves.
Electromotoric actuators for modulating control in radiator, chilled ceiling, VAV and fan coil unit applications. With automatic stroke adaption, force-dependent switching off in the end position, LED position indication, feedback signal, and manual operation. Suited for use with Siemens PICV VPP46../VPI46.., Siemens radiator valves VDN../VEN../VUN.., Siemens MiniCombi valves VPD../VPE.., Siemens small valves VD1..CLC and on radiator valves with M30 x 1.5 connection without adapter (Heimeier, Cazzaniga, Oventrop M30x1.5, Honeywell-Braukmann, MNG, Junkers, Beulco new). Further valves of other manufacturers on request.

Additional info

For fitting to the valve: Cap nut M30 x 1.5
1.2 mm minimal stroke required for self calibration
