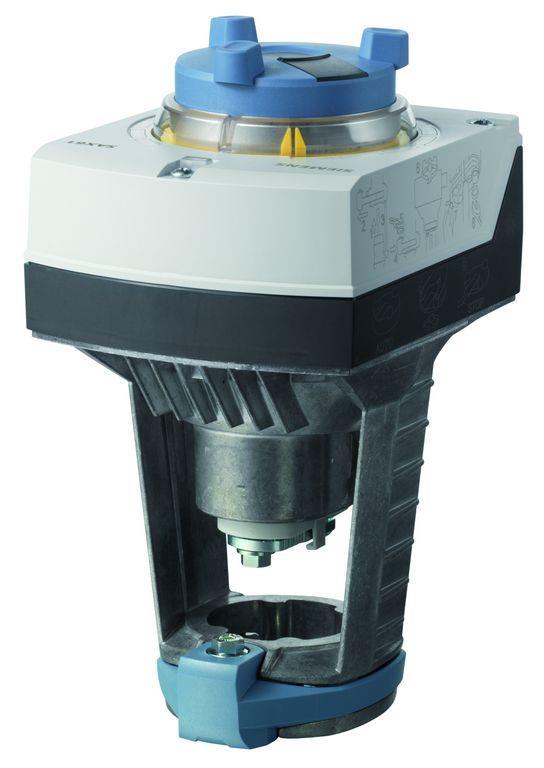

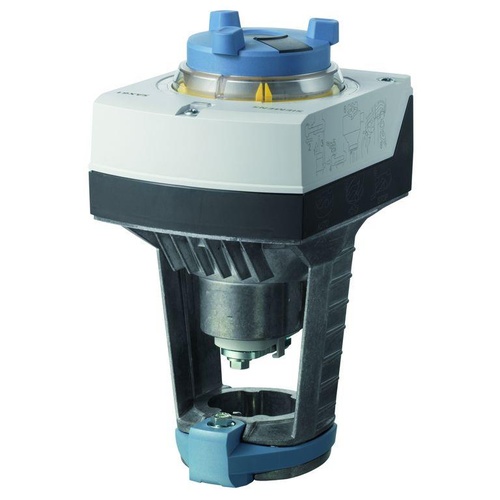

Siemens SAX31P03 240VAC 3-Position Control for Combi Valves

Actuators with 20 mm stroke and 500 N force

Electromotoric actuators to operate Siemens combi valves for type series VPF43.., VPF44.. and VPF53.. with 20 mm stroke, as control valves on ventilation, air conditioning, district heating and refrigeration plants.

•  SAX31P03 Operating voltage AC 230 V, 3-position positioning signal
•  SAX61P03 Operating voltage AC/DC 24 V, positioning signal 0...10V, 4...20 mA With position feedback, forced control, characteristic changeover
•  SAX61P03/MO operating voltage AC/DC 24 V, RS-485 for Modbus RTU communication
•  SAX81P03 Operating voltage AC/DC 24 V, positioning signal 3-position
•  For direct mounting on valves; no adjustments required
•  Manual adjuster, position and status indication (LED)
•  Optional functions with auxiliary switches, potentiometer
