Schneider 24VAC Multi-Signal PIBCV Actuator DN40-100

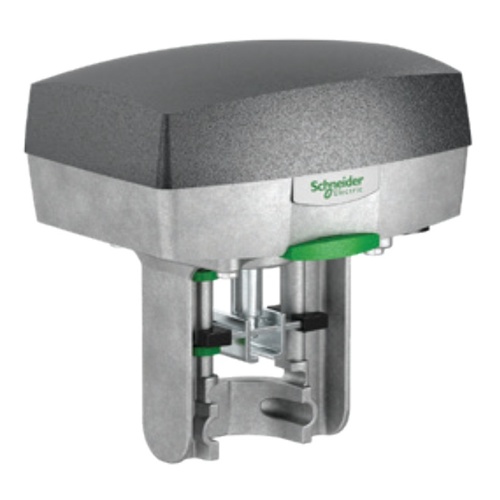

MP500C is an linear electro-mechanical actuator for the control of the VP220 SmartX PIBCV, DN40-100. MP500C is controlled either by an increase/decrease floating signal or by a range of modulating control signals between the span of 0…10V.

Features

• Brushless DC motor.
• High resolution control board allows precise fluid control.
• Working range and end point switches calibrate to any stroke and flow setting of the valve.
• A proportional set running time of 15s regardless of valve stroke.
• Multi-signal control for either 3 point increase/decrease signal or various modulating control signals including sequencing.
• The U-Bolt connection allows quick and easy direct mounting onto the SmartX PIBCV VP220x valves.
• Stroke Indicators on the yoke provide clear visual indication to the valves opening position.
