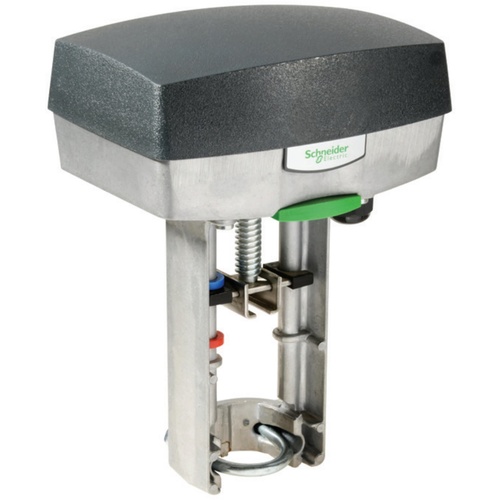

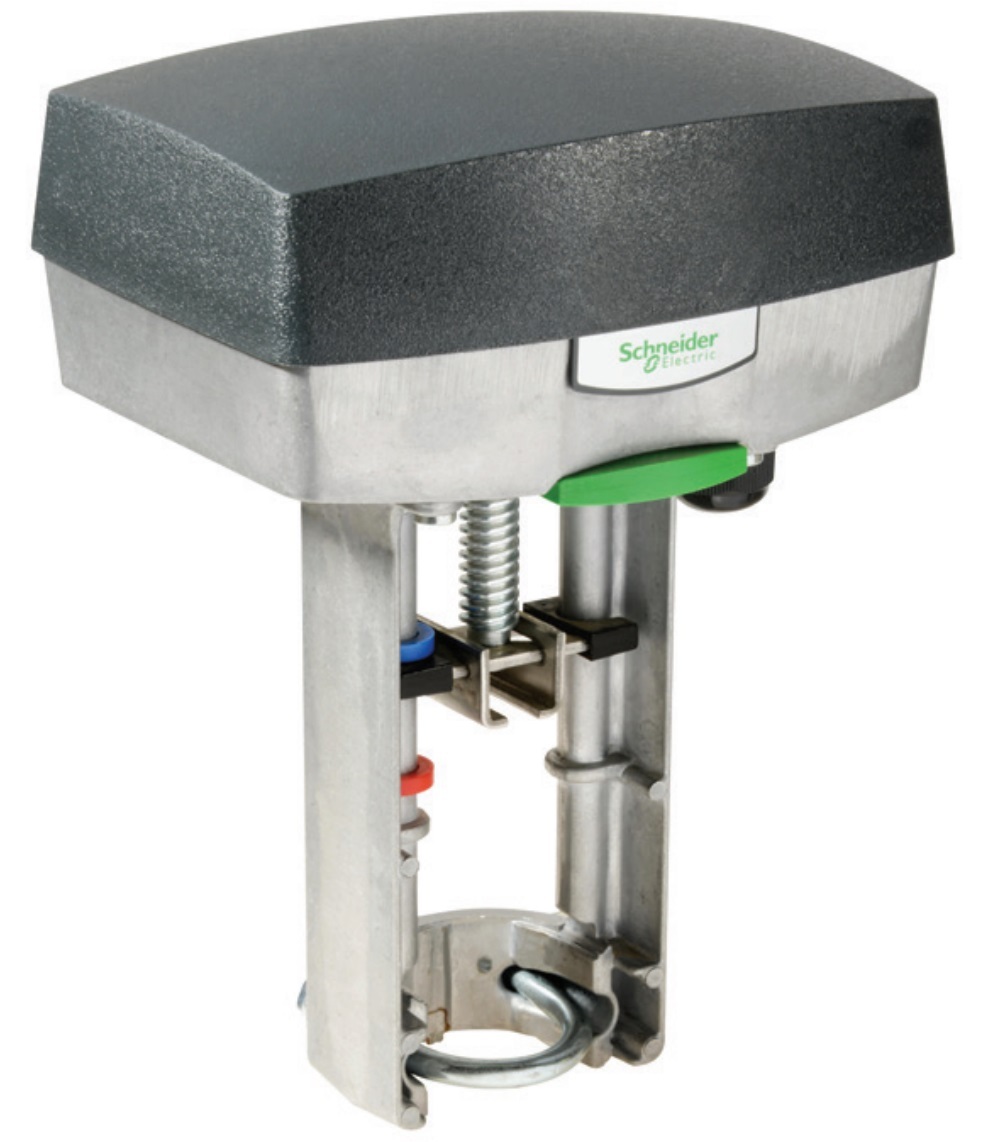

Schneider 400NM 24V Selectable Control Signal Valve Actuator
M400 is a flexible electro-mechanical actuator for the control of two-way and three-way linear globe valves in:
- heating systems
- air handling systems
M400 is primarily designed for applications where the demands on actuator speed and thrust are relatively small.
The M400 is either controlled by an increase/decrease signal or by a modulating control signal.
The Forta M400 has a high resolution PCBA for fine valve plug position and excellent flow control.
The electronic circuitry of the actuator ensures that the running time is consistent, regardless of the valve stroke. It is easy to mount and connect the actuator, with direct connection to the Venta valve series without any mounting kits.
The M400 is available with a mounting kit for Satchwell valves, linkage kits are also available for valves of other manufacture.
The working range of the actuator is adjusted automatically depending on the stroke of the valve.
The electronic circuitry of the actuator then takes care of the adjustment of the valve end positions and auxillary switch points.
2-10V Feedback signal is available on both modulation and on increase/decrease control
