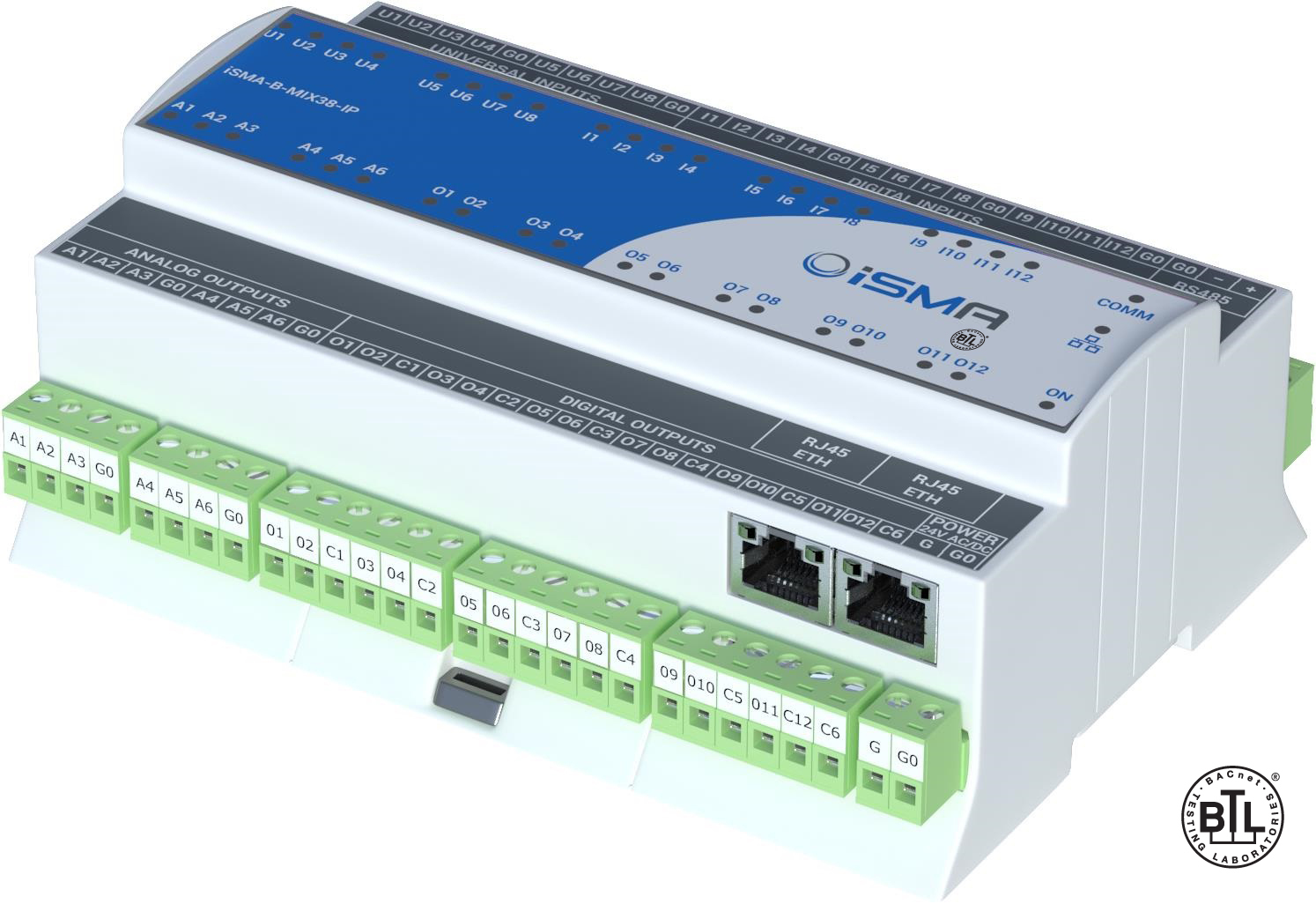

iSMA MIX38 Input/Output Module

Key Features
• A large number of all types of I/O
• All Digital Inputs work as fast counters up to 100 Hz
• Universal Inputs have 16-bit resolution which increase the accuracy of measurement
• Wide range of supported temperature sensors (NTC, PT1000 etc.)
• Automatic detection of the signal type in the case of Universal Inputs
• Digital Outputs 230 V AC max. 3 A allow direct control without additional relays
• Analog Output with max. 20 mA load allow direct control of relays (12 V DC) or SSR with PWM support
• LEDs indicate the status of inputs and outputs
• Supports open standards: BACnet or Modbus
• RS485 communication port, half-duplex
• 2x Fast Ethernet with built-in switch
• Built-in Modbus Gateway TCP/IP to RS485
• Simple and fast addressing from 1 to 99
