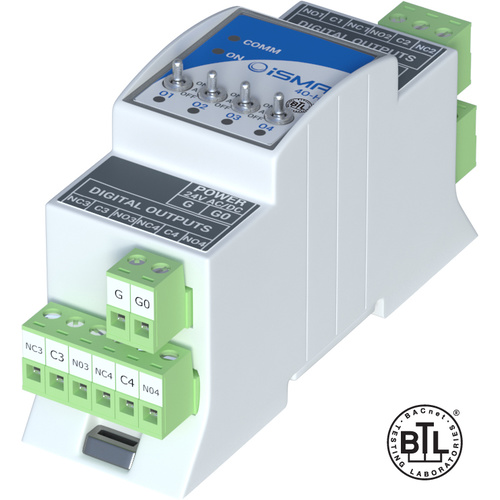

iSMA MINI 4O-H Output Module
iSMA-B-4O-H
Key Features
• 14 different types
• Small dimension
• Manual override switches
• Built-in light, cooling and heating control modes
• Present sensor support modes
• All Digital Inputs work as fast counters up to 100 Hz
• Universal Inputs have 16-bit resolution which increase the accuracy of measurement
• Wide range of supported temperature sensors (NTC, PT1000 etc.)
• Automatic detection of the signal type in the case of Universal Inputs
• Digital Outputs 230 V AC max. 3 A or 8 A allow direct control without additional relays
• Triac Outputs: 0,5 A @ 24 V AC, 0,5 A @ 230 V AC • Analog Output with max. 20 mA load allow direct control of relays (12 V DC) or SSR with PWM support
• LEDs indicate the status of inputs and outputs
• Supports open standards: BACnet or Modbus
• Built-in Modbus Gateway TCP/IP to RS485
• 1x Fast Ethernet • Simple and fast addressing from 1 to 99
(iSMA-B-MINI)
SKU | iSMA-B-MINI |
Brand | iSMA |
Shipping Weight | 0.1740kg |
Shipping Width | 0.060m |
Shipping Height | 0.080m |
Shipping Length | 0.180m |
Shipping Cubic | 0.000864000m3 |
Unit Of Measure | ea |
