BAPI Pierceable Knockout Plugs for Enclosure Ports

Features & Options:

• Quick and Easy to Install and Forms an Excellent Cable Seal
• Pierceable Center Membrane for Simple Cable Insertion
• Works in Non-Threaded Ports of the BAPI-Box and Junction Box Enclosures
• Works in Panels with a Metal Thickness of .118” or Smaller

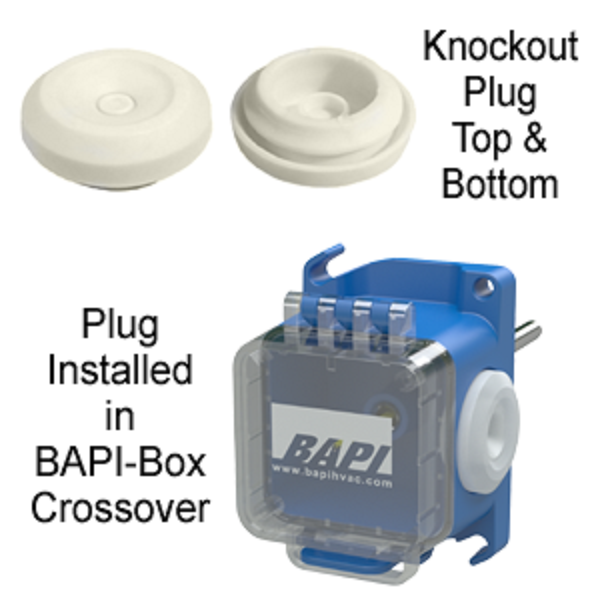

Pierceable Knockout Plugs are available for the open port in the BAPI-Box Crossover and BAPI-Box 4 Enclosure, as well as the non-threaded ports in the BAPI-Box, BAPI-Box 2 and Junction Box and enclosures. The plugs will also work in panels with a metal thickness of 0.118” or smaller. The plugs are made of TPE (Thermoplastic Elastomer) and feature a pierceable center membrane for easy wire insertion. When used with the proper diameter cable, the plugs form an excellent cable seal after piercing. When installed in the open port of the BAPI-Box 4 Enclosure, the Pierceable Knockout Plug increases the enclosure rating from IP10 to IP44. When installed in the open port of the BAPI-Box Crossover enclosure, the Pierceable Knockout Plug increases the enclosure rating from IP10 to IP44.
