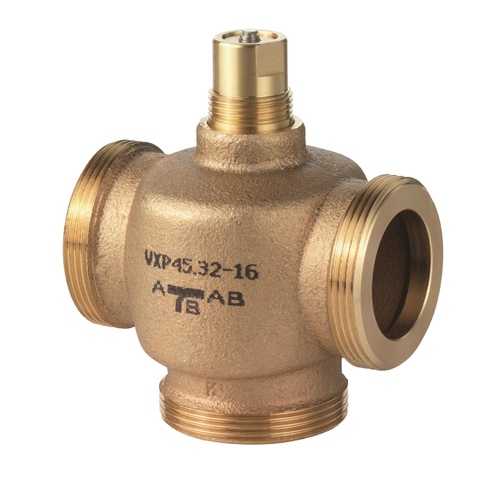

Siemens VXP45 40mm 3-way Kvs 25

3 Port Valves

• Red bronze CC499K valve body
• DN 10…40 • kvs 0.25…25 m3 /h
• Flat sealing, externally threaded connections G...B to ISO 228-1 for − Sets of ALG.. screwed fittings with threaded connection (available from Siemens) − SERTO compression fittings, type SO 00021.. (available from suppliers to the trade)
• Manual adjuster
• Can be equipped with SSB.. or SSC.. electromotoric actuators

Use

• In ventilation and air-conditioning systems for water-side terminal unit control in closed circuits, e.g. induction units, fan coil units, small reheaters, and small re-coolers used in: − 2-pipe systems with one heat exchanger for heating and cooling − 4-pipe systems with two separate heat exchangers for heating and cooling
• In closed-circuit zone heating systems, e.g. − Individual storey’s in a building − Apartments − Individual rooms

Compatible Valve Actuators

VVP & VXP45 Valve Actuators
