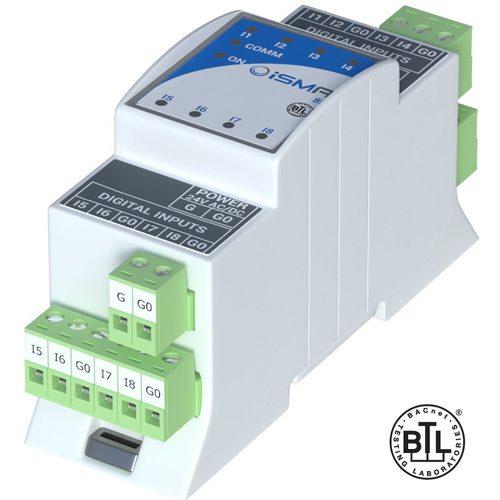

iSMA MINI 8I Digital Input Module

iSMA-B-8I

$276.32 ex GST
Sold Out - Backorder Available

Output Configuration
Input Configuration
Communications Interface


Calculate Shipping



Express Post - $35.00
Australia Post Next Day
Pickup - $0.00
Pickup from our Store

Specifications
8x Digital Inputs (8DI)
  • Dry contact inputs
  • Fast pulse counter up to 100 Hz save in EEPROM memory
Platform
  • Cortex-M3
Communication
  • Interface RS485 half duplex
  • Up to 99 devices on the bus
  • Protocols: Modbus or BACnet
  • Baud rate: 2400 to 115200 bps
Power supply
  • 24 V AC/DC
Housing
  • Dimension: 35x110x62 mm
  • Construction: plastic, self-extinguishing (PC/ABS)
  • DIN rail mounting (DIN EN 50022 norm)
  • Cooling: internal air circulation
Environments
  • Operating temperature: -10°C to 50°C
  • Storage temperature: -40°C to 85°C
  • Relative humidity: 5 to 95%, no condensation
  • Ingress Protection Rating: IP40 – for indoor installation

(MINI8I)

SKU MINI8I
Brand iSMA
Shipping Weight 0.2500kg
Shipping Width 0.120m
Shipping Height 0.075m
Shipping Length 0.100m
Shipping Cubic 0.000900000m3
Unit Of Measure ea
