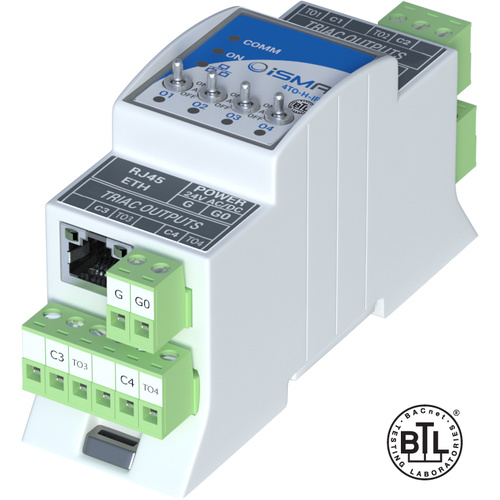

iSMA MINI 4TO-H-IP Ethernet Output Module
iSMA-B-4TO-H-IP
$585.00
ex GST
Sold Out - Backorder Available
Specifications
4x Triac Outputs (4TO)
- Triac outputs: 0,5 A @ 24 V AC, 0,5 A @ 230 V AC
Platform
- Cortex-M3
Communication
- Interface RS485 half duplex
- 1 x Fast Ethernet
- Up to 99 devices on the bus
- Protocols: Modbus or BACnet
- Baud rate: 2400 to 115200 bps
Power supply
- 24 V AC/DC
Housing
- Dimension: 35x110x62 mm
- Construction: plastic, self-extinguishing (PC/ABS)
- DIN rail mounting (DIN EN 50022 norm)
- Cooling: internal air circulation
Environments
- Operating temperature: -10°C to 50°C
- Storage temperature: -40°C to 85°C
- Relative humidity: 5 to 95%, no condensation
- Ingress Protection Rating: IP40 – for indoor installation
(MINI4TO-H-IP)
| SKU | MINI4TO-H-IP |
| Brand | iSMA |
| Shipping Weight | 0.2500kg |
| Shipping Width | 0.120m |
| Shipping Height | 0.075m |
| Shipping Length | 0.100m |
| Shipping Cubic | 0.000900000m3 |
| Unit Of Measure | ea |
