ECSXX-R-20-100
eGauge High Accuracy/Revenue Grade Split Core Current Transducer 20mm 100A with
$219.13 ex GST
Description
The eGauge Pro is a 3-in-1 (meter, data logger, and web server), 30 channel multi-circuit smart energy meter designed for high accuracy energy monitoring applications. It is natively compatible with up to 3-phase 277/480 Vac and 6900 A (higher voltages with optional voltage sensors). Each unit is its own data logger that stores up to 64 data points for the lifetime of the hardware, and the user can access data as granular as 1-second for the most recent hour of recording. The embedded web server allows the user to connect to the interface over the internet or on a local area network. Access your meter data (at no additional cost) using the user interface, or with other systems using Modbus (RTU or TCP), BACnet (IP or MS/TP), as well as the web-based JSON and XML API. In addition, the eGauge meter can read and log data from remote Modbus RTU and TCP devices.
Reviews
Be The First To Review This Product!
Help other Controls Traders Pty Ltd users shop smarter by writing reviews for products you have purchased.
$2,580.72
ex GST
In
Stock
Description

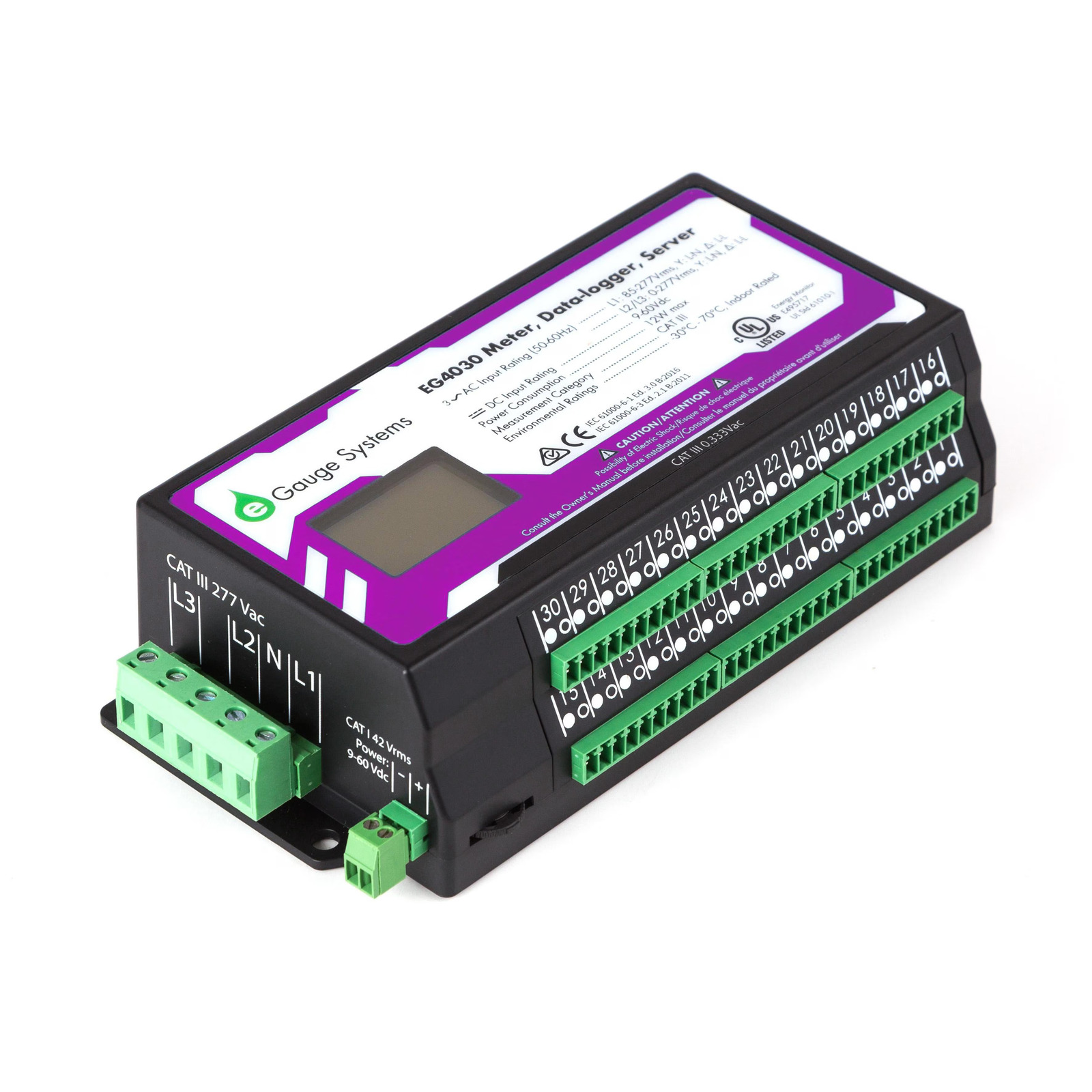

The eGauge Pro is a 3-in-1 (meter, data logger, and web server), 30 channel multi-circuit smart energy meter designed for high accuracy energy monitoring applications. It is natively compatible with up to 3-phase 277/480 Vac and 6900 A (higher voltages with optional voltage sensors). Each unit is its own data logger that stores up to 64 data points for the lifetime of the hardware, and the user can access data as granular as 1-second for the most recent hour of recording. The embedded web server allows the user to connect to the interface over the internet or on a local area network. Access your meter data (at no additional cost) using the user interface, or with other systems using Modbus (RTU or TCP), BACnet (IP or MS/TP), as well as the web-based JSON and XML API. In addition, the eGauge meter can read and log data from remote Modbus RTU and TCP devices.
Reviews
Be The First To Review This Product!
Help other Controls Traders Pty Ltd users shop smarter by writing reviews for products you have purchased.
