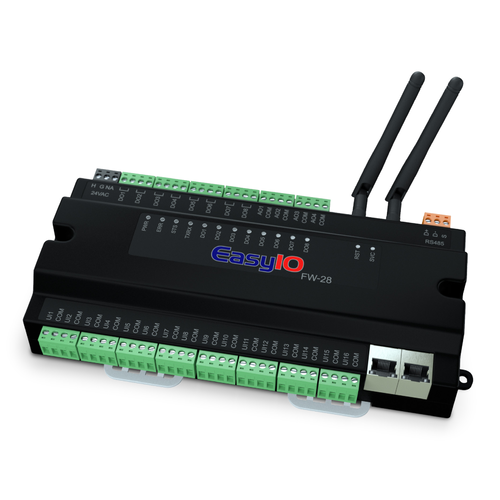

EasyIO FW-28 Wi-Fi BMS Controller
The EasyIO FW-28 extends the FW series with all the proven technology of the range and increases the product reach with a larger I/O capability.
The award winning FW series deliver high performance BMS functionality, with flexibility in design and installation with the Wi-Fi and dual Ethernet
port capability. Dependent on your requirement, the FW product range can be used within a high performance EasyIO total system solution and
utilises our best performance and overall solution cost approach. Or simply implemented in isolation in an IoT based demand, with the onboard MQTT capability. The FW series opens up the design process for our Partners and permits a far more flexible approach to delivering the modern
demands of our buildings. The FW product range is often seen as a Fan Coil Unit controller, but it is far more diverse and flexible than that. It should
be considered within an overall system design as an integral part of your total solution.
The FW-28 can be programmed and live commissioned via free CPT Tools and an integrated HMTL5 dashboard. It has BACnet IP server/client, BACnet MSTP client (combination of BACnet MSTP client and BACnet IP client up to fve devices total), newly introduced Modbus RTU support,
to give us greater and increased functionality and two Ethernet ports for daisy chain connection wiring to the recommended standards. The FW
series supports IT based standards and security protocols, and can be set up within a client’s Wi-Fi network or set up as an isolated BMS WiFi network as required. The FW-28 includes 12 UI (voltage and resistance), 4 AO (Voltage) and 8 DO with 24VAC Volt free contact relays. For floating
control, the optional FR-02 module is available to add to the FW-28. The FW series products also feature Sox, TCom, P2P and BACnet communication protocols and MQTT.
|Unit Of Measure||ea|
