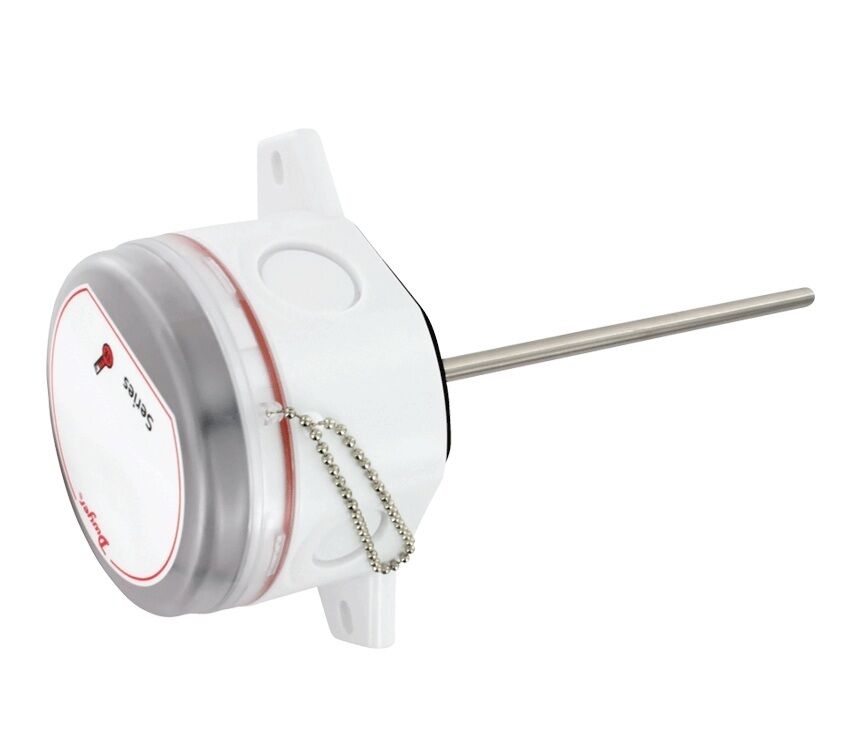

Dwyer 10K-2 Immersion Temperature Sensor 150mm


$37.00 ex GST
Sold Out - Backorder Available

Calculate Shipping

Express Post - $30.00
Australia Post Next Day
Pickup - $0.00 (ETA: 1 days)
Pickup from our Store

The Series TE Duct and Immersion Building Automation Temperature Sensors can be used to monitor air or water temperature throughout a building management system or an air handler unit. Duct or immersion options available with or without an enclosure. FEATURES/BENEFITS •Easytomountexternaltabhousingandflangeoptionsforductapplications • 1/4 turn housing cover with chain to prevent dropping •Multipleconduitknockoutsforeasyinstallationpositioning • 8´ plenum rated cable option •Terminalconnectoreliminatesneedforwirenuts APPLICATIONS • Building automation • VAV temperature sensing • Chiller or boiler loops • AHU monitoring

Accuracy: Thermistor temperature sensor: ±0.22°C @ 25°C (±0.4°F @ 77°F); RTD temperature sensor: DIN class A: ±0.15°C @ 0°C (±0.28°F @ 32°F).

Temperature Limits: Operating: -40 to 302°F (-40 to 150°C).


SKU TE-IBG-B0644-14
Brand Dwyer
Shipping Weight 0.1740kg
Shipping Width 0.075m
Shipping Height 0.125m
Shipping Length 0.180m
Shipping Cubic 0.001687500m3
Unit Of Measure ea
