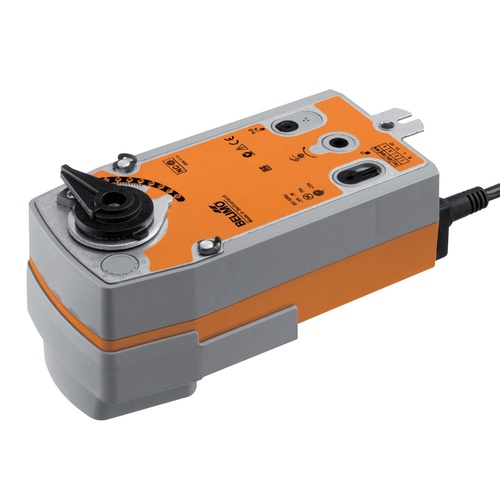

Belimo 20Nm 24V 0-10V Spring Return Valve Actuator

Rotary actuator fail-safe NC, 20 Nm, AC/DC 24 V, 2...10 V, 90 s, IP54

Specifications

Voltage AC/DC

AC/DC 24 V

Power consumption (running)

5.5 W

Power consumption (holding)

3 W

Power Consumption For Wire Sizing

8.5 VA

Connection Supply Control

Cable 1 m, 4 x 0.75 mm²

Torque

20 Nm

Control type

DC 2...10 V

Direction Of Motion Motor

Y = 0 (0 V = A – AB = 0%)

Direction of rotation (fail-safe)

Deenergised NC, valve closed (A – AB = 0%)

Manual override

By means of hand crank and locking switch

Running time (motor)

90 s / 90°

Running time (fail-safe)

<20 s

Protection category

IP54

Degree Of Protection NEMA

NEMA 2

Enclosure Type

UL Enclosure Type 2

Ambient Tempreture

-30...50°C [-22...122°F]
