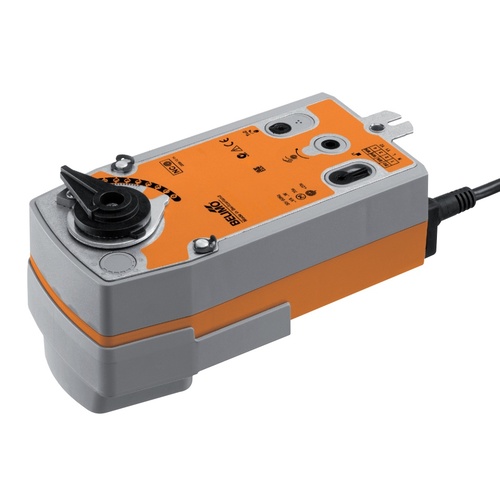

Belimo 10Nm 24...240V On/Off Spring Return Rotary Valve Actuator w/ Aux Switch
NRFA-S2
$378.00
ex GST
RRP $630.00
SAVE $252.00 (40%)
Sold Out - Backorder Available
Rotary actuator fail-safe NC, 10 Nm, AC 24...240 V / DC 24...125 V, Open/close, 75 s, 2x SPDT, IP54
Specifications
- Voltage AC/DC
- AC 24...240 V / DC 24...125 V
- Power consumption (running)
- 6 W
- Power consumption (holding)
- 2.5 W
- Power Consumption For Wire Sizing
- 9.5 VA
- Auxiliary switches
- 2x SPDT
- Connection Supply Control
- Cable 1 m, 2 x 0.75 mm²
- Connection Auxilary Switch
- Cable 1 m, 6 x 0.75 mm²
- Torque
- 10 Nm
- Control type
- Open/close
- Direction of rotation (fail-safe)
- Deenergised NC, valve closed (A – AB = 0%)
- Manual override
- By means of hand crank and locking switch
- Running time (motor)
- 75 s / 90°
- Running time (fail-safe)
- <20 s
- Protection category
- IP54
- Degree Of Protection NEMA
- NEMA 2
- Enclosure Type
- UL Enclosure Type 2
- Ambient Tempreture
- -30...50°C [-22...122°F]
(BEL-VAL-NRFA-S2)
| SKU | BEL-VAL-NRFA-S2 |
| Brand | Belimo |
| Shipping Weight | 2.1000kg |
| Shipping Width | 0.110m |
| Shipping Height | 0.110m |
| Shipping Length | 0.260m |
| Shipping Cubic | 0.003146000m3 |
| Unit Of Measure | ea |
