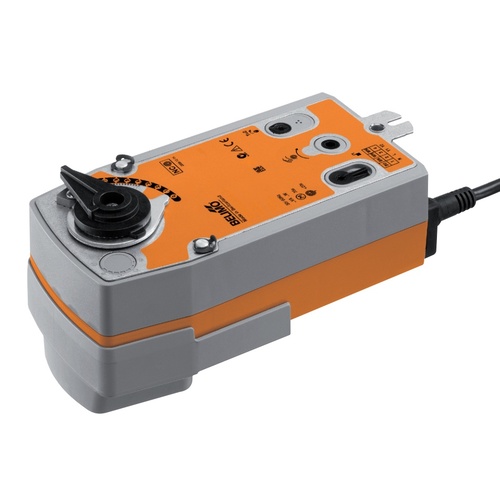

Belimo 10Nm 24...240V On/Off Spring Return Rotary Valve Actuator

Rotary actuator fail-safe NC, 10 Nm, AC 24...240 V / DC 24...125 V, Open/close, 75 s, IP54

Specifications

Voltage AC/DC

AC 24...240 V / DC 24...125 V

Power consumption (running)

6 W

Power consumption (holding)

2.5 W

Power Consumption For Wire Sizing

9.5 VA

Connection Supply Control

Cable 1 m, 2 x 0.75 mm²

Torque

10 Nm

Control type

Open/close

Direction of rotation (fail-safe)

Deenergised NC, valve closed (A – AB = 0%)

Manual override

By means of hand crank and locking switch

Running time (motor)

75 s / 90°

Running time (fail-safe)

<20 s

Protection category

IP54

Degree Of Protection NEMA

NEMA 2

Enclosure Type

UL Enclosure Type 2

Ambient Tempreture

-30...50°C [-22...122°F]
