Description

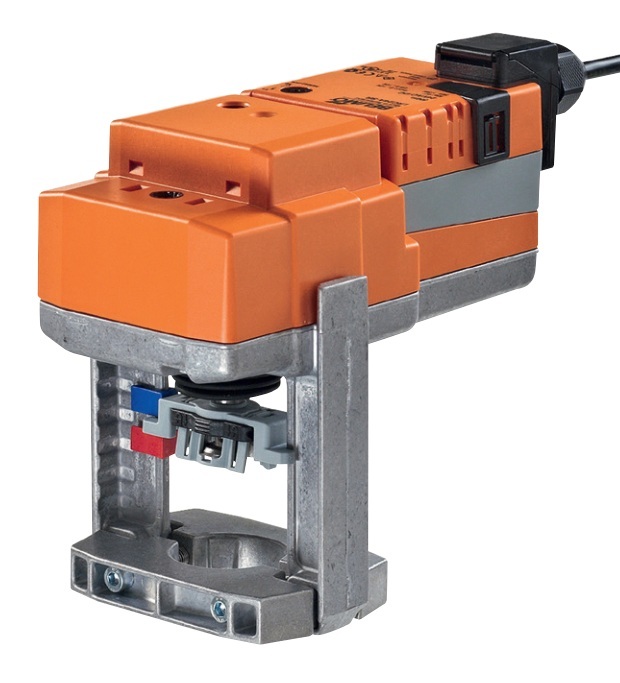

Globe valve actuator, 1000 N, AC/DC 24 V, Open/close, 0-10Vdc, 150 s, Stroke 20 mm, IP54, Terminals with cable for 2-way and 3-way Siebe VB7000 and VB9000 series 1/2" to 1 1/4".  Includes Siebe valve retrofit kit.

Specifications

Voltage AC/DC
AC/DC 24 V
Power consumption (running)
1.5 W
Power consumption (holding)
0.5 W
Power Consumption For Wire Sizing
3 VA
Connection Supply Control
Terminals with cable 1 m, 3 x 0.75 mm² (Terminal 4 mm²)
Force
1000 N
Control type
  • Open/close
  • 3-point
Manual override
With push-button, can be locked
Stroke
20 mm
Running time (motor)
150 s / 20 mm
Protection category
IP54
Degree Of Protection NEMA
NEMA 2
Enclosure Type
UL Enclosure Type 2
Ambient Tempreture
0...50°C [32...122°F]
