Description
Humans respirate Volatile Organic Compounds (VOCs) as well as CO2. The BAPI sensor measures these VOCs and indicates when a space is occupied just as well as a CO2 sensor.
The advantage of the VOC sensor is that it measures air contaminants from other sources besides respiration, such as building materials, cleaners, perfumes and furniture and carpet off-gassing. Using this sensor for Demand Controlled Ventilation then is a way of achieving true indoor air quality, rather than just CO2 dilution.
A further benefit is that it requires no additional work on your part. That’s because the sensor converts the VOC reading to a CO2 equivalent level. This lets you use ASHRAE’s CO2-based VRP schedule to ventilate. (More information on the CO2 equivalent output is available on our website or in the Application Notes tab below.)

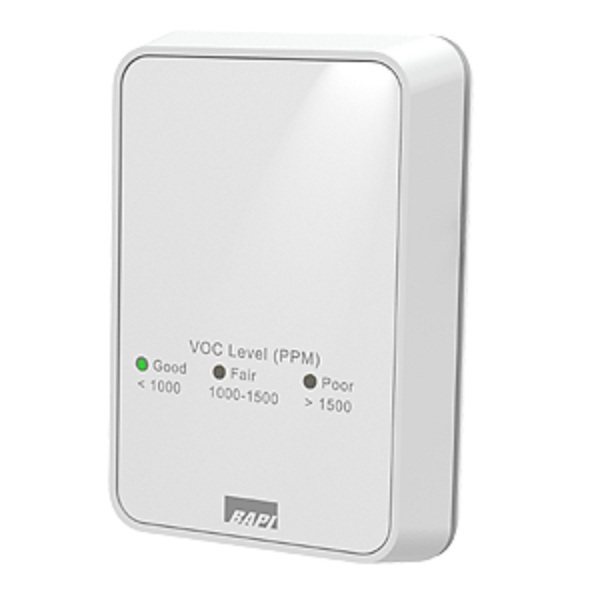

The BAPI-Stat “Quantum” VOC Room Sensor features 0 to 5 VDC or 0 to 10 VDC output. The VOC level is indicated as “Good, Fair or Poor” by three discrete green, yellow and red LED’s on the front of the unit. If the output reaches 2,000 PPM, the red LED will begin to flash because it has hit its maximum output.
Reviews
Be The First To Review This Product!
Help other Controls Traders Pty Ltd users shop smarter by writing reviews for products you have purchased.
BAPI Quantum VOC Room Sensor 0-10V
BABQX-B
$610.93
ex GST
Sold Out - Backorder Available
