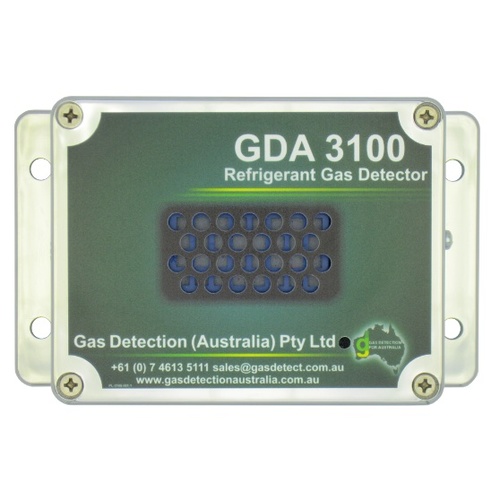

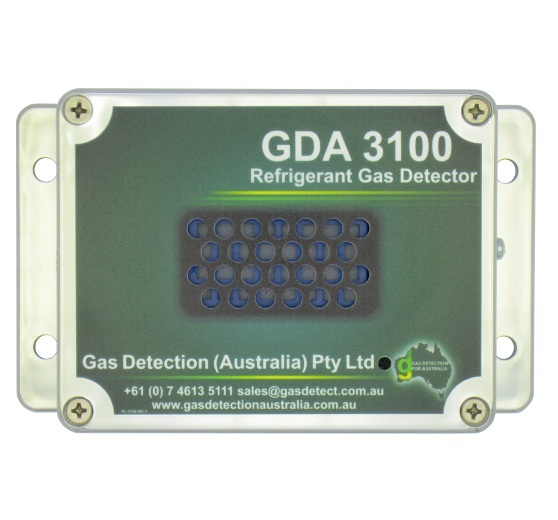

GDA Infrared Refrigerant Gas Detector R22

GDA 3100-009

$2,320.00 ex GST
In Stock

Refrigerant Type

Calculate Shipping

Express Post - $30.00
Australia Post Next Day
Pickup - $0.00
Pickup from our Store

This detector detects generally used refrigerant gases (R22, R123, R134a, R404, R407,R410 etc) in the range 0-1000ppm. Each dectector is calibrated to a specific gas type. It has a configurable analog output, 4-20 mA; 0-20 mA; 0-5 V; 0-10 V.  There is also a volt free relay which can be user programmed to operate anywhere within the sensor range. The unit is powered from 24 VDC.

  • Standalone system or 4-20 mA o/p sensor or both
  • User definable alarm point (relay operation)
  • 1 SPCO alarm relay (volt free)
  • User selectable 4-20 mA or 0-20 mA 0-5 V 0-10 V o/p
  • 24 VDC operation
  • Robust housing IP62
  • Easy to install
  • Calibration required every 3 years with 6 monthly functional tests
  • Australian Factory certificate of Calibration


Brand Gas Detection (Aust) Pty Ltd
Shipping Weight 0.3000kg
Shipping Width 0.092m
Shipping Height 0.060m
Shipping Length 0.153m
Shipping Cubic 0.000845000m3
Unit Of Measure ea
