GDA Flush Mount Infrared Refrigerant Gas Detector R22

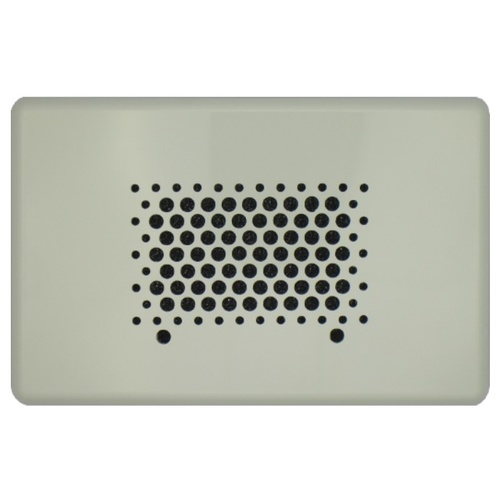

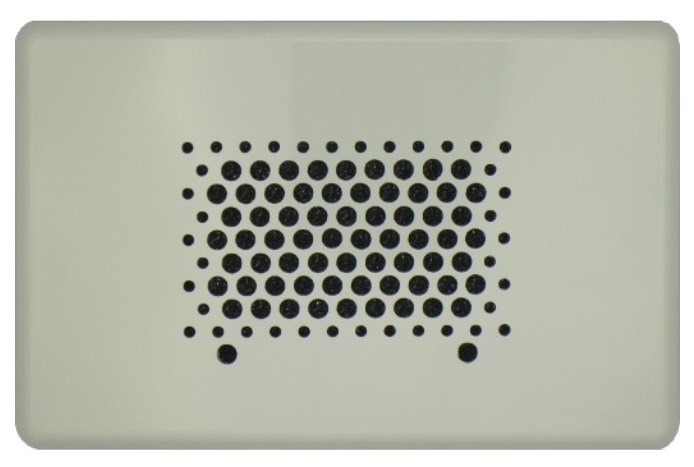

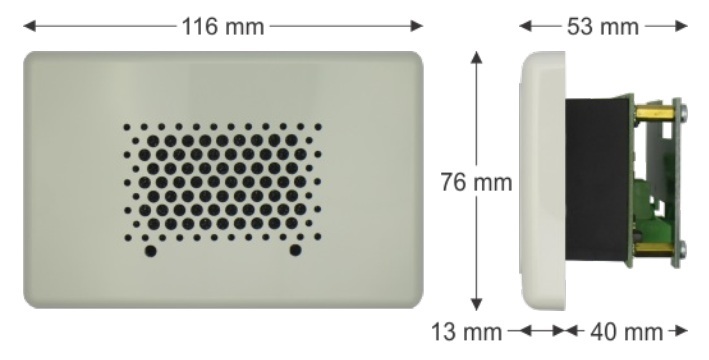

The GDA 3160 is a low profile wall mounted refrigerant detector for use in offices and laboratories where a gas sensor needs to appear non obtrusive. It is designed to fit into a Clipsal double gang GPO wall mount. The total protrusion from the wall is 13mm. The sensor uses NDIR techniques for detecting a wide range of refrigerant gases and is therefore immune from cross sensitivity to other gases. It has 4-20 mA o/p and interfaces to the full range of GDA control units and will interface to BMS and SCADA.

• Refrigerants (R22, R123, R134a, R404, R407, R410 etc) HFO's (R514a,
  R1234yf etc)
• Standalone system or 4-20 mA, 0-20 mA, 0-5 V ; 0-10 V + volt free relay
• Highly selective, Infra red sensor. Not affected by other gases found in offices or laboratories
• No false alarms due to other gases
• 1 alarm relay (volt free)
• 1 x 4-20 mA or 0-20 mA or 0-10 V or 0-5 V o/p
• 24 VDC operation
• Flush wall mounted housing. To fit in with office environment
• Easy to install
