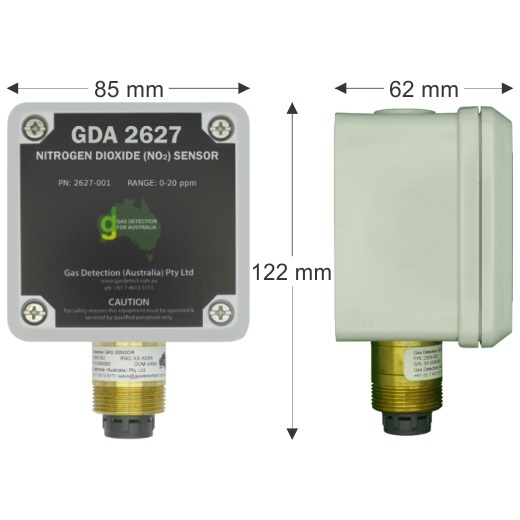

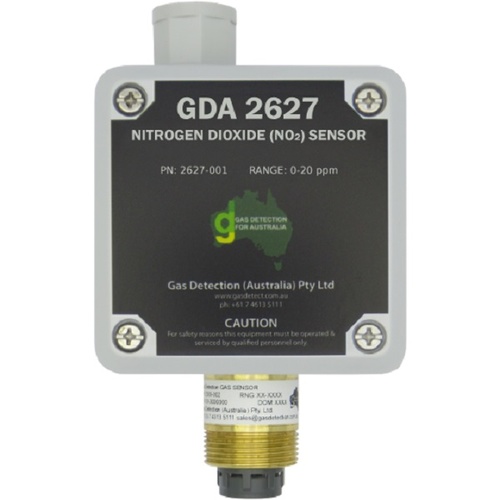

GDA 0-20ppm Nitrogen Dioxide (NO2) Gas Sensor

2627-001

$820.00
Sold Out - Backorder Available


Calculate Shipping



Express Post - $25.00
Australia Post Next Day
Pickup - $0.00
Pickup from our Store

The gas sensor element is on a pluggable lead to allow ease of replacement. The nitrogen dioxide gas sensor electronics are housed in a robust ABS sun tolerant plastic enclosure rated IP65; the sensor head and its electronics are housed in a metal enclosure giving it excellent RFI and EMC compatibility. The sensor head is fitted with a splash proof cover giving an IP62 rating. Provides the option of 4-20 mA, 0-10 V, and 0-5 V operation. The additional voltage o/p can be used on BMS systems that use voltage inputs as opposed to current input

  • 0-20 ppm Range (Other ranges on request)
  • 4-20 mA, 0-5 V or 0-10 V o/p
  • Low cost replaceable gas sensor element
  • Easy to install
  • Easy to calibrate (only gas and multimeter required)
  • ABS sun tolerant IP66 housing (sensor element IP62)
  • Australian Factory Certificate of Calibration

(GDA2627-001)

SKU GDA2627-001
Brand Gas Detection (Aust) Pty Ltd
Shipping Weight 0.3000kg
Shipping Width 0.100m
Shipping Height 0.062m
Shipping Length 0.150m
Shipping Cubic 0.000930000m3
Unit Of Measure ea
