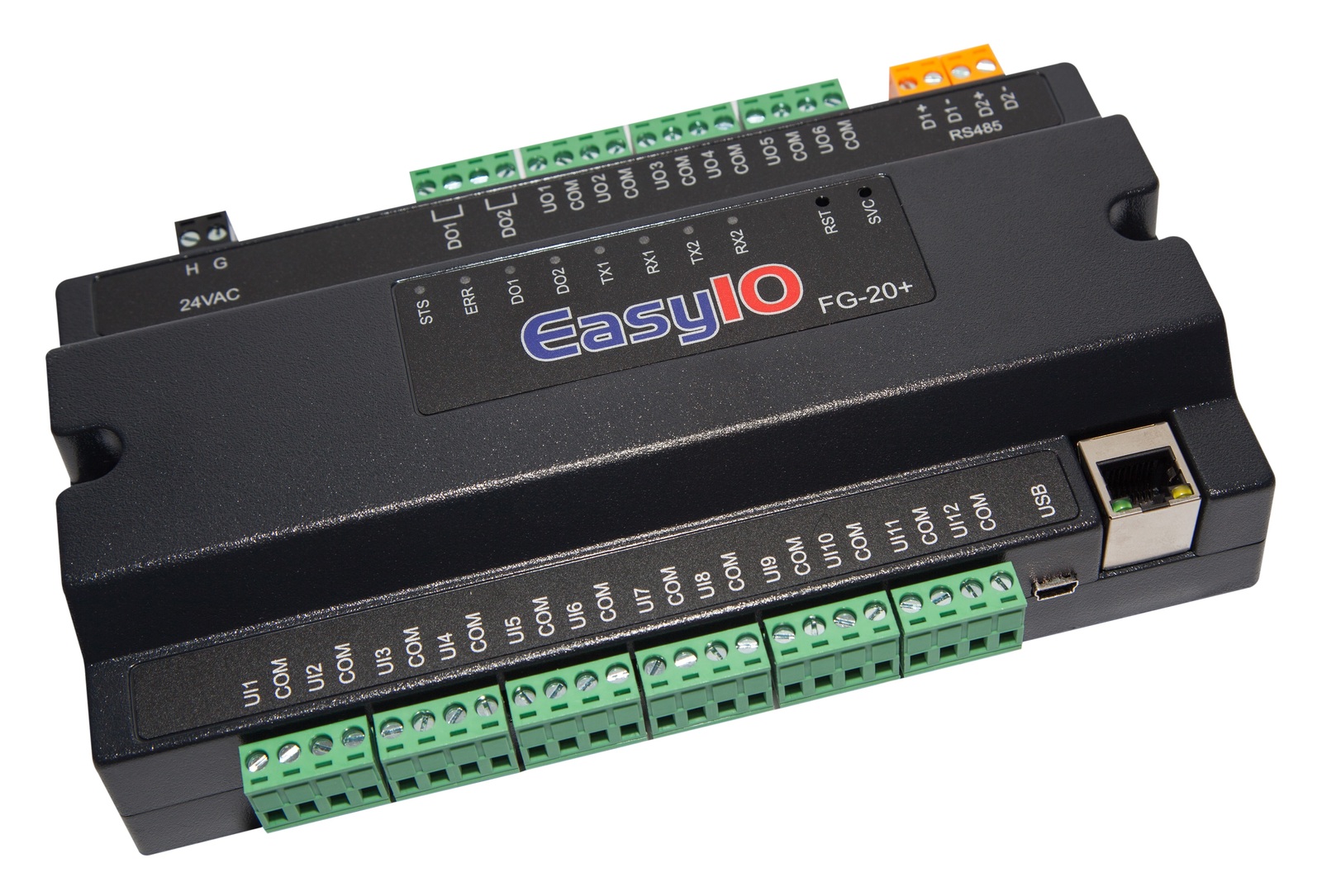

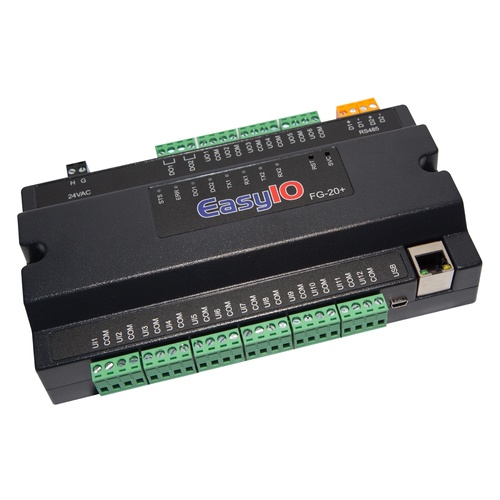

EasyIO FG-20+ BMS Controller

The EasyIO FG+ series of Sedona controllers are freely programmable, internet ready field controllers. They support multi concurrent protocols and services such as BACnet, Modbus, TCOM, web services and both server and client services. Besides that, they can be programmed live, with free software CPT Tools.

The range complies with the Internet of Things by interfacing directly to cloud services, without an additional gateway or server. To power the application, the FG+ series have a dual ARM processor engine and also a built-in web server (HMTL5, PHP, SQL).

Another exciting feature, is the openness, and its web friendly tools to enable third party tools to be deployed in addition to the workbench that we are all familiar with today. This platform meets the needs of simple control requirements and complex HVAC plants, such as chiller sequencing and roof top control.

The FG+ series change the way Building Automation is deployed. Especially in multiple facilities and locations where a starter package can be deployed quickly, and cost effectively, without any additional hardware or middleware.

This range of FG+ controllers allows the industry to extend their reach deeper and wider into all kinds of energy performance solutions. Ranging from retail stores, schools, residential, hospitals, smart grid and so on.

Product code: EASYIO-FG-20+

Characteristics

• ARM 9 400MHz main processor
• ARM Cortex-M3 processor for the I/O
• 64Mbyte RAM
• 128Mbyte NAND Flash
• 8G SD card built-in for Histories and Graphics
• 1x 10/100 Ethernet Port
• 1x Mini USB
• 2x RS485
• Real Time Clock
• SuperCap Apps Backup
• 24V AC/DC Power
• Hardware Security ID
• 12x Universal inputs
• 2x Digital outputs with LED for status
• 6x Universal outputs (200mA sink for switching relays)
• Remote Flash Upgrades
• HTML5 Web Server on Board
