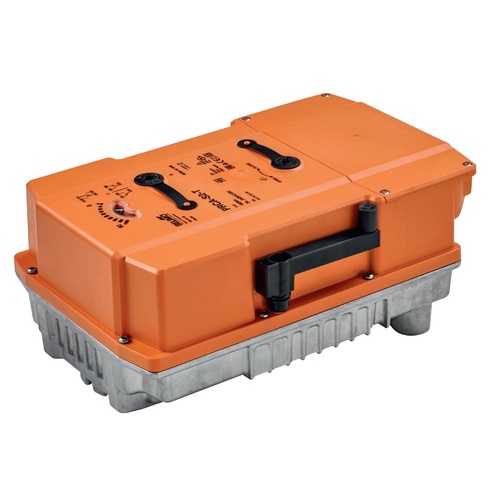

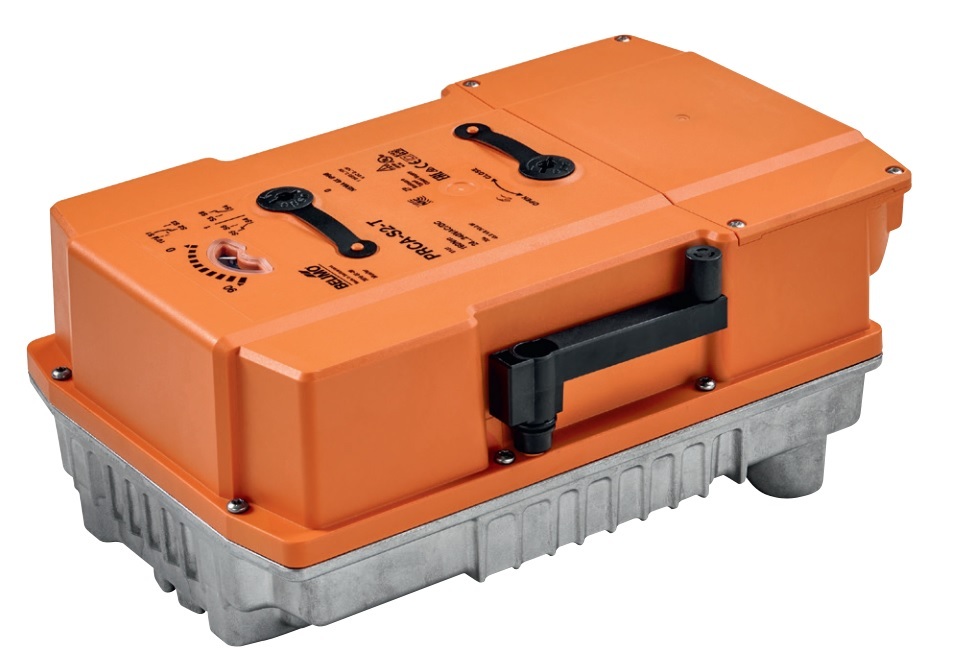

Belimo Butterfly Valve Actuator 0-10V, BACnet, MODbus
PMCA-BAC-S2-T
$2,073.60
ex GST
RRP $3,441.00
SAVE $1,367.40 (40%)
Sold Out - Backorder Available
Specifications
- Voltage AC/DC AC 24...240 V / DC 24...125 V
- Power consumption (running) 20 W
- Power consumption (holding) 6 W
- Power Consumption For Wire Sizing with 24 V 19 VA / with 240 V 49 VA
- Auxiliary switches 2 x SPDT
- Connection Supply Terminals 2.5 mm²
- Connection Protective Earth earth terminal
- Connection Control Terminals 1.5 mm²
- Connection Auxilary Switch Terminals 2.5 mm²
- Torque 160 Nm
- Control type
-
- BACnet MS/TP
- Modbus RTU
- MP-Bus
- DC 2...10 V
- DC 0.5...10 V
- 4...20 mA
- Open/close
- 3-point
- Hybrid (communicative / analogue)
- Direction Of Motion Motor
- electronically reversible
- Manual override
- Hand lever
- Angle of rotation
- 95
- Running time (motor)
- 35 s / 90°
- Running time motor variable
- 30...120 s
- Mechanical interface
- Form fit 17x17 mm
- Protection category
- IP66/67
- Degree Of Protection NEMA
- NEMA 4X
- Enclosure Type
- UL Enclosure Type 4X
- Ambient Tempreture
- -30...50°C [-22...122°F]
(BEL-VAL-PMCA-BAC-S2-T)
| SKU | BEL-VAL-PMCA-BAC-S2-T |
| Brand | Belimo |
| Shipping Weight | 8.5000kg |
| Shipping Width | 0.220m |
| Shipping Height | 0.190m |
| Shipping Length | 0.330m |
| Shipping Cubic | 0.013794000m3 |
| Unit Of Measure | ea |
